Kingston KVR56U46BD8-32GB DDR5 5600 CL46 Udimm

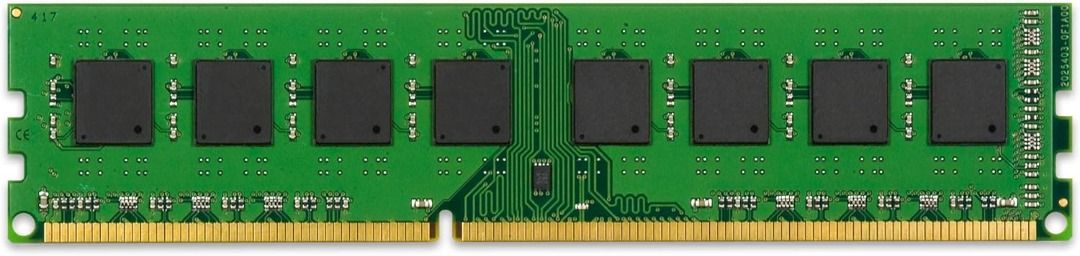

KVR56U46BD8-32 32GB 2Rx8 4G x 64-Bit PC5-5600 CL46 288-Pin DIMM This document describes ValueRAM's KVR56U46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. • Power Supply: VDD = 1.1V Typical • VDDQ = 1.1V Typical • VPP = 1.8V Typical • VDDSPD = 1.8V to 2.0V • On-Die ECC • PCB: Height 1.23” (31.25mm) • RoHS Compliant and Halogen-Free
