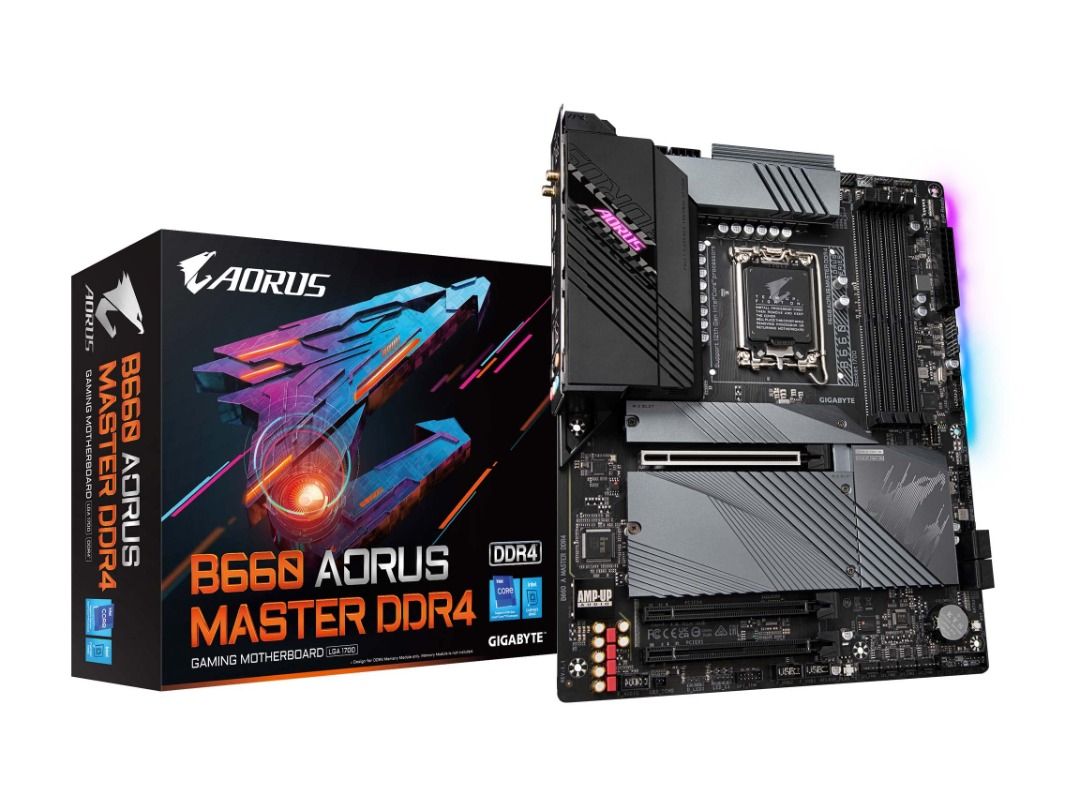

B660 AORUS MASTER Motherboard

Description

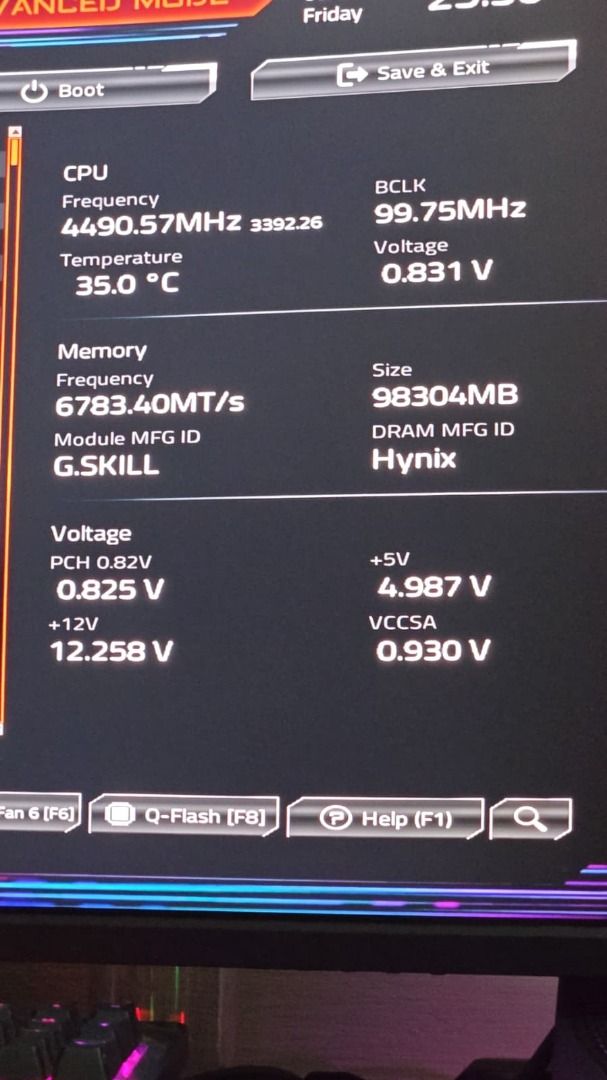

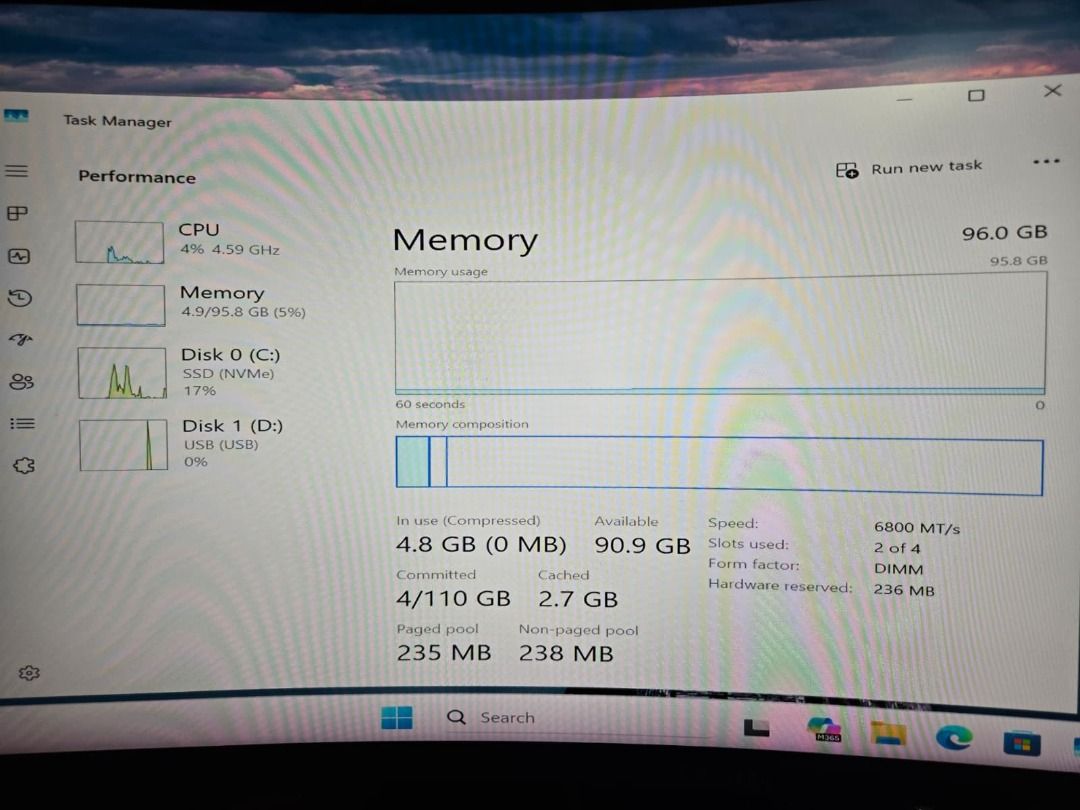

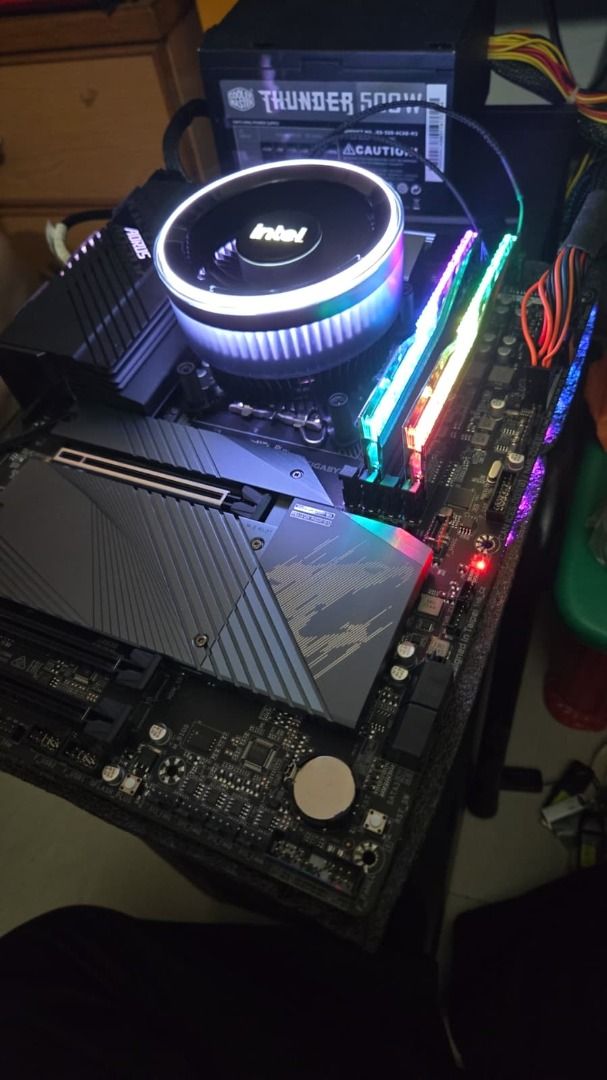

Note: DDR5 6800MHz 96GB tested working, stability is dependent on CPU memory controller. 🖥️ Motherboard Specifications 🔧 CPU Socket: LGA1700 Supported Processors: 14th Gen Intel® Core™ 13th Gen Intel® Core™ 12th Gen Intel® Core™ Intel® Pentium® Gold Intel® Celeron® Cache: L3 cache varies by CPU 🧩 Chipset Intel® B660 Express Chipset 🧠 Memory Type: DDR5 Speed Support: 6000 / 5800 / 5600 / 5400 / 5200 MHz (OC) 4800 / 4000 MHz (native) Slots: 4 × DIMM Max Capacity: 256 GB (64 GB per DIMM) Architecture: Dual-channel Supported Memory Types: ECC Unbuffered DIMM (non-ECC mode) Non-ECC Unbuffered DIMM XMP (Extreme Memory Profile) supported 🎮 Onboard Graphics Integrated Graphics (via CPU): 1 × DisplayPort (max 4096×2304 @ 60Hz, DP 1.2, HDCP 2.3) 1 × HDMI (max 4096×2160 @ 60Hz, HDMI 2.1, HDCP 2.3) 🔊 Audio Realtek® ALC1220-VB Codec High Definition Audio Supports: 2 / 4 / 5.1 / 7.1-channel audio S/PDIF Out DSD audio (line-out jack) 🌐 Networking LAN: Intel® 2.5GbE (2.5G / 1G / 100M) 📡 Wireless Wi-Fi 6 (802.11ax) with 2.4GHz & 5GHz dual-band Bluetooth 5.2 Up to 2.4 Gbps theoretical speed 🧱 Expansion Slots 1 × PCIe 4.0 x16 1 × PCIe 3.0 x16 (runs at x4) 1 × PCIe 3.0 x16 (runs at x1) Multi-GPU Support: AMD CrossFire™ (2-way & Quad-GPU) 💾 Storage M.2 Slots: 1 × PCIe 4.0 (CPU) 1 × PCIe 4.0 (Chipset) 1 × PCIe 3.0 (Chipset) SATA: 4 × SATA 6Gb/s RAID Support: RAID 0 / 1 / 5 / 10 Additional: Intel® Optane™ Memory Ready 🔌 USB Ports Rear Panel: 1 × USB-C (USB 3.2 Gen 2x2) 1 × USB-A (USB 3.2 Gen 2) 4 × USB 3.2 Gen 1 4 × USB 2.0 Internal Headers: 1 × USB-C (Gen 2) 1 × USB 3.2 Gen 1 header 2 × USB 2.0 headers 🔗 Internal Connectors Power: 24-pin ATX 8-pin + 4-pin CPU power Cooling: 1 × CPU fan 1 × water cooling CPU fan 6 × system fan/pump headers RGB: 2 × Addressable RGB 2 × RGB strip headers Storage: 3 × M.2 slots 4 × SATA Other: Front panel & audio headers TPM header Thunderbolt add-in connectors Temperature sensors Clear CMOS jumper Q-Flash Plus button 🔌 Back Panel I/O USB: 1 × USB-C (Gen 2x2) 1 × USB-A (Gen 2) 4 × USB 3.2 Gen 1 4 × USB 2.0 Display: 1 × DisplayPort 1 × HDMI Network: 1 × RJ-45 (2.5GbE) 2 × Wi-Fi antenna connectors Audio: Optical S/PDIF Out 5 × audio jacks ⚙️ BIOS 256 Mbit Flash AMI UEFI BIOS Supports: Q-Flash / Q-Flash Plus ACPI 5.0, SMBIOS 2.7 🧰 Software & Features APP Center utilities: @BIOS, EasyTune, Fast Boot Game Boost, RGB Fusion Smart Backup, System Viewer Bundled Software: Norton Internet Security (OEM) cFosSpeed 🖥️ Operating System Support Windows 11 (64-bit) Windows 10 (64-bit) 📏 Form Factor ATX Dimensions: 30.5 cm × 24.4 cm
