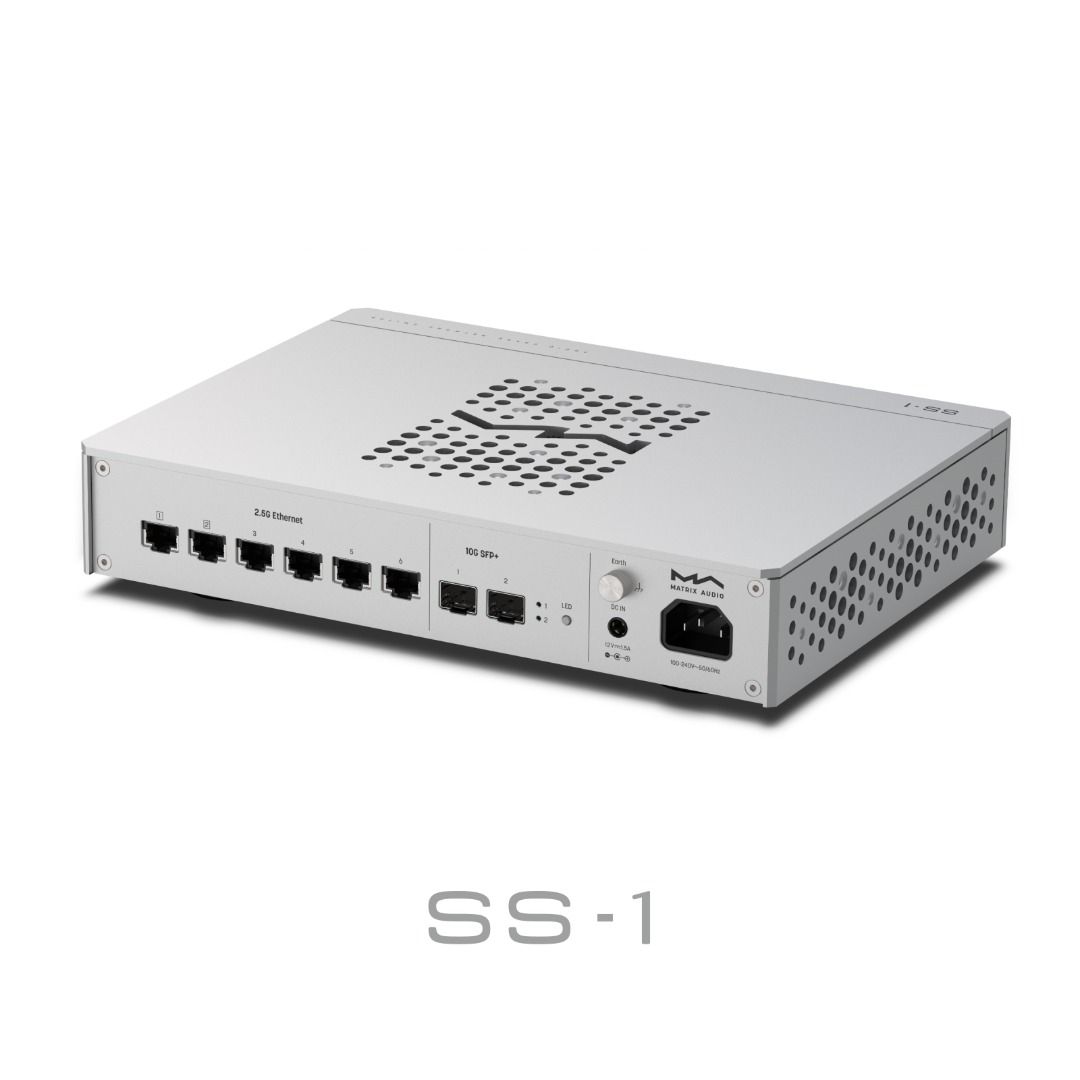

MATRIX AUDIO SS-1

Description

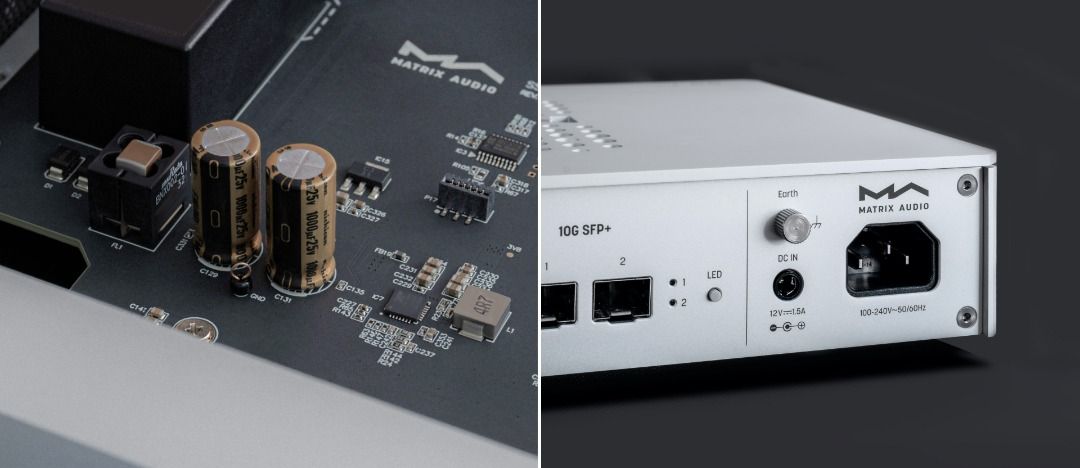

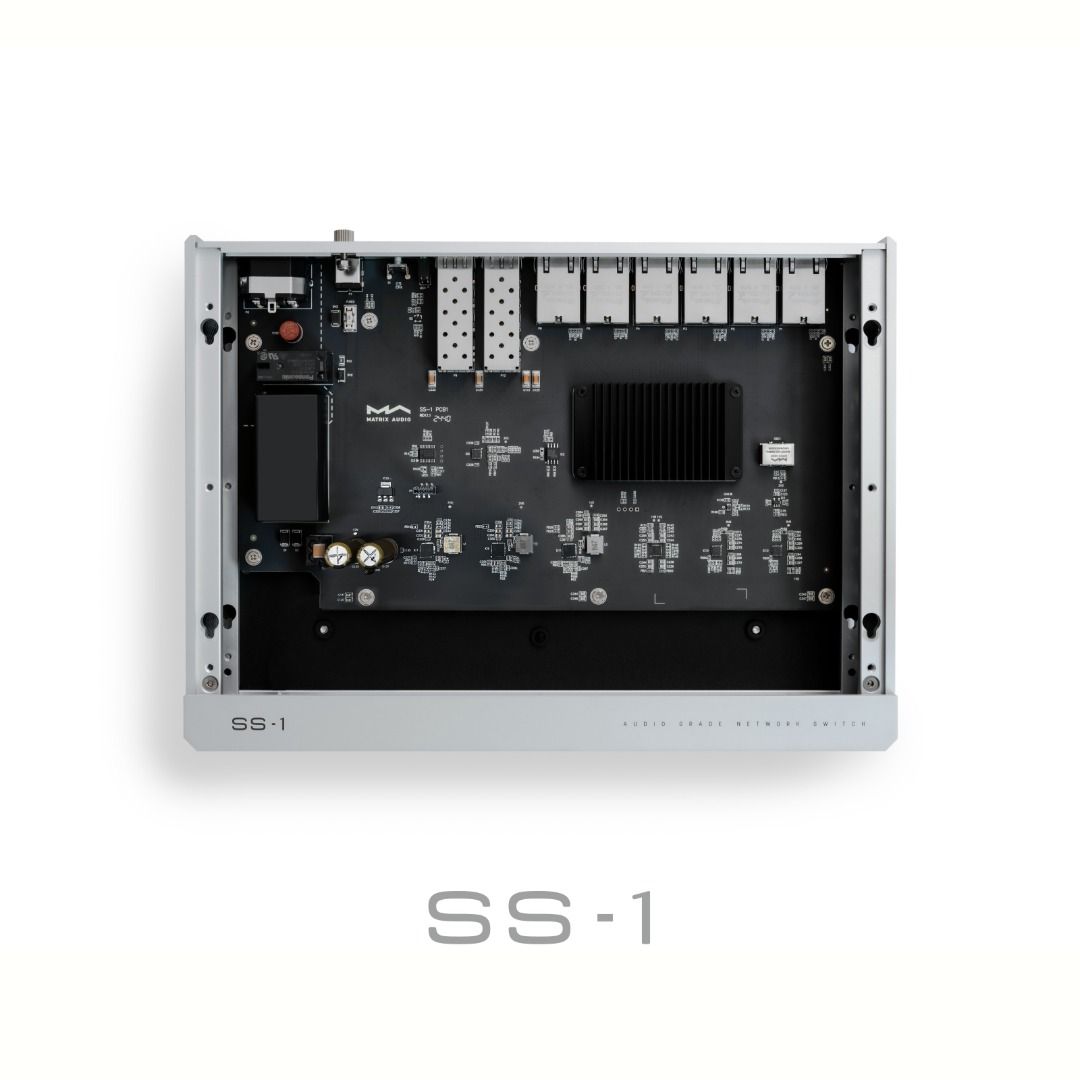

SS-1 Pro/SS-1 is an audio-grade network switch specifically designed by Matrix Audio for Hi-Fi streaming audio scenarios. Unlike traditional network switches, this product is meticulously engineered to meet the requirements of Hi-Fi audio systems. It includes comprehensive enhancements in its power system, clock system, cooling methods and component selection, all focused on ensuring the lossless transmission of high-definition streaming audio. Standards and Protocol IEEE 802.3：10BASE-T IEEE 802.3 u：100BASE-X IEEE 802.3 z：1000BASE-T IEEE 802.3 ab：1000BASE-T IEEE 802.3 ae：10G BASE-SR/LR IEEE 802.3 bz：2.5G/5G BASE-T IEEE 802.3 cb：2500BASE-X SS-1 2x 100Mbps/10Mbps RJ45 4x 2.5Gbps/1Gbps/100Mbps/10Mbps RJ45 2x 10Gbps SFP/SFP+ SS-1 AC input Power Supply Type：Wide voltage input switching power supply Power Voltage: AC 100V-240V 50/60Hz Power Consumption: < 15W DC input External power voltage: DC 12V ±10% External power wattage: Larger than 18W Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer) SS-1 Weight & Dimensions 2.3kg（5.07 pounds） Width: 280 mm (11.02 inches) Depth: 206 mm (8.11 inches) Height: 58.5 mm (2.30 inches) 1 Year warranty local Agent set. https://www.matrix-digi.com/product/111/SS-1_Pro_SS-1
